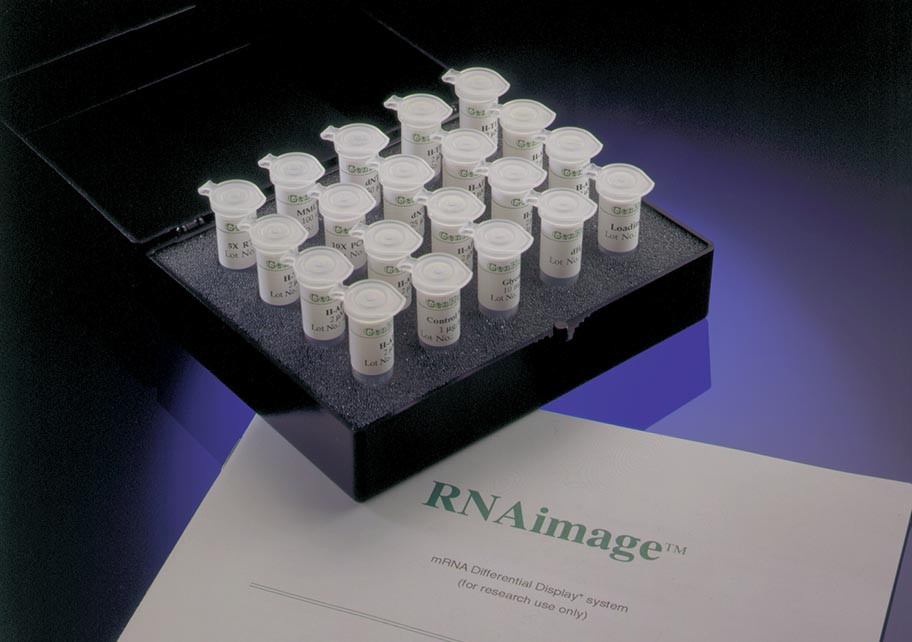

RNAimage DD Kits (for standard Differential Display)

Image 1
$620.00
Quantity:
Description
Specifications
Ordering
Documents

Product Description

For mRNA Differential Display with three one-base anchored oligo-dT primers and rationally designed arbitrary 13mers.



These kits feature the latest generation of isotopic mRNA Differential Display technology (U.S. Patents 5,262,311; 5,599,672; 5,665,547; 5,965,409; Japanese Patent 2843675 and pending patents).  Each kit contains all the reagents needed for differential display except Taq DNA polymerase and alpha-[33P] dATP.  The MessageClean® Kit is highly recommended to remove trace amounts of DNA contamination from RNA samples prior to DD.

  RNAimage Kit 1

   1.   5X Reverse Transcription Buffer 200 µL
   2.   MMLV Reverse Transcriptase
           (100 u/µL)		 40 µL
   3.   dNTP (250 µM) 200 µL
   4.   H-T11G Anchor Primer 300 µL
   5.   H-T11A Anchor Primer 300 µL
   6.   H-T11C Anchor Primer 300 µL
   7.   10X PCR Buffer 500 µL
   8.   dNTP (25 µM) 500 µL
   9.   H-AP1 Arbitrary Primer 150 µL
   10. H-AP2 Arbitrary Primer 150 µL
   11. H-AP3 Arbitrary Primer 150 µL
   12. H-AP4 Arbitrary Primer 150 µL
   13. H-AP5 Arbitrary Primer 150 µL
   14. H-AP6 Arbitrary Primer 150 µL
   15. H-AP7 Arbitrary Primer 150 µL
   16. H-AP8 Arbitrary Primer 150 µL
   17. Control RNA (1 µg/µL) 1 µL
   18. Glycogen (10 mg/mL) 200 µL
   19. dH2O 1.2 mL
   20. Loading Dye 500 µL

Each kit contains all the reagents needed for differential display except RNA samples, Taq DNA polymerase, and isotope. The MessageClean® Kit is also highly recommended prior to differential display to remove trace amounts of DNA contamination from RNA samples.



The major improvements over the original RNAmap™ technology are: (1) Optimized primer length ensures excellent reproducibility and maximized coverage of expressed genes. (2) One-base anchored primers minimize the redundancy of the displayed cDNA and simplifies the reverse transcription reactions. (3) Attached Hind III site to the primers facilitates the manipulation of the cDNA after cloning.



We also offer the RNAspectra FDD (Fluorescent Differential Display) Kits.



All kits are shipped on dry ice via overnight delivery. A detailed step-by step protocol is included.



RNAimage® Kits 2-10 contain all the components of Kit 1, but each has 8 different arbitrary 13mers (H-AP9 to H-AP80).



One could start with any RNAimage® Kit, since the sequences are random and designed to be maximally different from one another, but to ensure a maximum coverage, multiple kits may be needed.

  RNAimage Kit 1

   1.   5X Reverse Transcription Buffer 200 µL
   2.   MMLV Reverse Transcriptase
           (100 u/µL)		 40 µL
   3.   dNTP (250 µM) 200 µL
   4.   H-T11G Anchor Primer 300 µL
   5.   H-T11A Anchor Primer 300 µL
   6.   H-T11C Anchor Primer 300 µL
   7.   10X PCR Buffer 500 µL
   8.   dNTP (25 µM) 500 µL
   9.   H-AP1 Arbitrary Primer 150 µL
   10. H-AP2 Arbitrary Primer 150 µL
   11. H-AP3 Arbitrary Primer 150 µL
   12. H-AP4 Arbitrary Primer 150 µL
   13. H-AP5 Arbitrary Primer 150 µL
   14. H-AP6 Arbitrary Primer 150 µL
   15. H-AP7 Arbitrary Primer 150 µL
   16. H-AP8 Arbitrary Primer 150 µL
   17. Control RNA (1 µg/µL) 1 µL
   18. Glycogen (10 mg/mL) 200 µL
   19. dH2O 1.2 mL
   20. Loading Dye 500 µL

Each kit contains all the reagents needed for differential display except RNA samples, Taq DNA polymerase, and isotope. The MessageClean® is also highly recommended prior to differential display to remove trace amounts of DNA contamination from RNA samples.

Documents


 Cat. No.
 RNAimage Kit 1
 G501
 RNAimage Kit 2 G502
 RNAimage Kit 3 G503
 RNAimage Kit 4 G504
 RNAimage Kit 5
 G505
 RNAimage Kit 6
 G506
 RNAimage Kit 7
 G507
 RNAimage Kit 8
 G508

 RNAimage Kit 9

 G509

 RNAimage Kit 10

 G510

We also offer the RNAspectra FDD (Fluorescent Differential Display) Kits.
