PerfectWestern Containers (for Membrane Strips)

$0.00
Quantity:
Description
Specifications
Ordering
Documents

Product Description

We offer these 11 PerfectWestern Containers in standard single-chamber (non-compartmented) format for membrane strips. All containers are available in clear & black versions. Dimensions, Catalog numbers, and Recommended volumes are listed in the Specifications Tab.


We have another 12 Single-chamber containers for full blots (Click here) as well as 14 Compartmented/Sectional containers (Click here).



Which PerfectWestern Container fits your Gel System?
Gel Manufacturer Containers Cat. No. (Clear version)
Bio-Rad
  Mini-PROTEAN 3 Skinny Strip / Small Strip EXT / Small Strip EXT-WIDE (for horizontal strips)  B170 / B123 / B172
  Small Strip (for vertical strips) B113
  Criterion Precast Small Strip EXT / Small Strip EXT-WIDE / Medium Strip (for horizontal strips)  B123 / B172 / B115
  Medium Strip EXT / Large Strip / Long Strip (for vertical strips) B168 / B117 / B126
  PROTEAN II xi, 16 cm
  PROTEAN II xi, 20 cm
  PROTEAN II XL, 16 cm
  PROTEAN Plus
Invitrogen/Novex
  Novex XCell SureLock Mini Skinny Strip / Small Strip EXT / Small Strip EXT-WIDE (for horizontal strips) B170 / B123 / B172
  Skinny Strip / Small Strip / Small Strip EXT (for vertical strips) B170 / B113 / B123
  Novex XCell SureLock Midi / E-PAGE Gels  Small Strip EXT / Small Strip EXT-WIDE / Medium Strip (for horizontal strips)  B123 / B172 / B115
  Medium Strip EXT / Large Strip / Long Strip (for vertical strips) B168 / B117 / B126
Biometra (formerly from Invitrogen)

  Mini-V 8•10 Skinny Strip / Small Strip EXT / Small Strip EXT-WIDE (for horizontal strips) B170 / B123 / B172
  Small Strip (for vertical strips) B113
  V15•17 Vertical Gel. Elect.
  V16 or V16-2
  Maxigel
GE / Hoefer (formerly Amersham)

  Mighty Small SE250 Skinny Strip / Small Strip EXT / Small Strip EXT-WIDE (for horizontal strips) B170 / B123 / B172
  Small Strip (for vertical strips) B113
  Mighty Small SE260 Skinny Strip / Small Strip EXT / Small Strip EXT-WIDE (for horizontal strips) B170 / B123 / B172
  Skinny Strip / Small Strip / Small Strip EXT (for vertical strips) B170 / B113 / B123
  miniVE Vert. Gel Elect (SE300)
  SE600/SE400 (18 x 8)
  SE600/SE400 (18 x 16)
  SE640 (18 x 8)
  SE660 (24 x 18)
  Ettan Dalt II / six / twelve (2D gel)
  Multiphor II, Excel 2D 12.5
  Multiphor II, Excel XL 12-14
Lonza (formerly Cambrex/FMC/BMA)
  PAGEr Gold Precast (8.3 x 7.1)
  PAGEr Gold Precast (8.3 x 8.1)
Owl/ThermoFisher
  Puffin P81
  Penguin P8DS
  Penguin P9DS
  Penguin P10DS




Container Inside Dimensions (LxWxH):

Container Dimensions (cm) Dimensions (inches) Clear Black      Vol. (minimum/recom.)

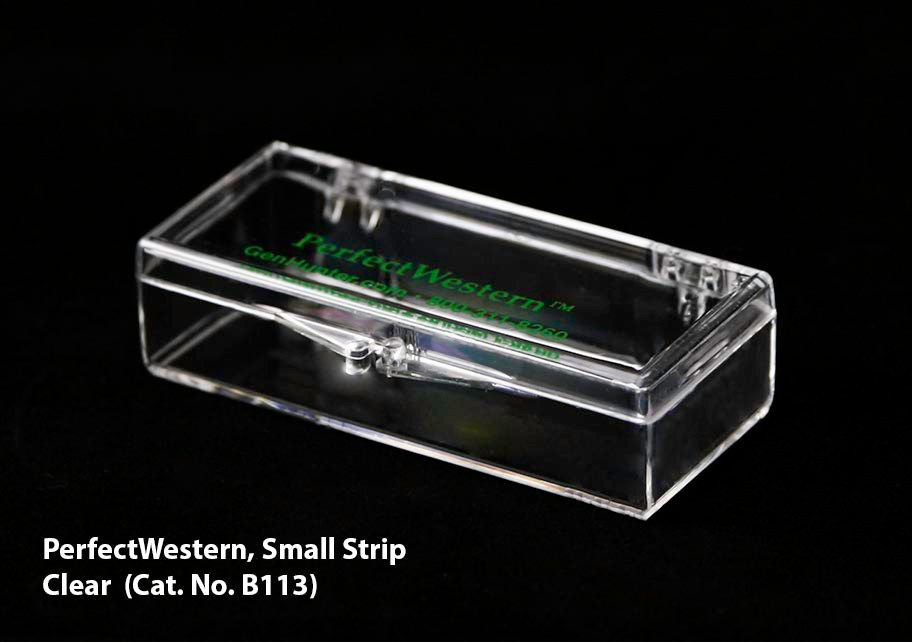

Small Strip
7.4  x  3.1  x  1.9
2 7/8  x  1 1/4  x  3/4  B113  B114      1.0 mL / 1.2 - 1.5 mL
Skinny Strip
8.8  x  1.75  x  1.3 3 7/16  x  11/16  x  1/2  B170  B171      0.7 mL / 0.8 - 1.0 mL
Small Strip EXT 9.5  x  3.0  x  1.9  3 7/8  x  1 3/16  x  3/4  B123  B124      1.3 mL / 1.5 - 2.0 mL
Small Strip EXT-WIDE
10.1  x  4.05  x  2.8 4  x  1 19/32  x  1 1/16  B172 B173      1.9 mL / 2.1 - 2.5 mL
Medium Strip 11.1  x  5.2  x  2.6 4 3/8  x  2 1/16  x  1  B115  B116      2.2 mL / 2.7 - 3.5 mL
Slimmer 14.3  x  1.4  x  1.7 5 9/16  x  9/16  x  11/16  B128  B129      1.0 mL / 1.1 - 1.4 mL
Slim 15.0  x  1.85  x  1.9 5 15/16  x  11/16  x  3/4  N/A*  B147      1.3 mL / 1.5 - 2.0 mL
Medium Strip EXT 13.9  x  5.0  x  3.2 5 1/2  x  2  x  1 5/16  B168  B169      3.0 mL / 3.3 - 4.0 mL
Large Strip 14.7  x  6.7  x  3.6 5 3/4  x  2 5/8  x  1 7/16  B117  B118      4.0 mL / 4.5 - 6.0 mL
Mini Doublewide 17.8  x  8.9  x  3.0 7  x  3 9/16  x  1 1/8  B136 B137
     7.0 mL / 8.0 - 10 mL
Long Strip 19.0  x  3.8  x  2.2 7 1/2  x  1 1/2  x  13/16  B126 B127
     4.0 mL / 4.3 - 5.5 mL
    *Notes: The "Slim" container is not currently available in the clear version, but the black version (B147) is still available for now.
                 "Volume" column refers to solution volume (minimum & recommended) required to cover a membrane during Western blotting.
                       These volumes are variable and depend on several factors including your rocker/shaker & how expensive your antibody is.

Documents

perfectwesternbrochure2016coverdownload.jpg             perfectwestern-actual-sizes-layout-web-opt.jpg



Catalog Numbers (SKU) for Clear & Black versions
Container Dimensions (cm) Clear Black
Small Strip
7.4  x  3.1  x  1.9
 B113  B114
Skinny Strip
8.8  x  1.75  x  1.3  B170  B171
Small Strip EXT 9.5  x  3.0  x  1.9   B123  B124
Small Strip EXT-WIDE
10.1  x  4.05  x  2.8  B172 B173
Medium Strip 11.1  x  5.2  x  2.6  B115  B116
Slimmer 14.3  x  1.4  x  1.7  B128  B129
Slim 15.0  x  1.85  x  1.9  N/A*  B147
Medium Strip EXT 13.9  x  5.0  x  3.2  B168  B169
Large Strip 14.7  x  6.7  x  3.6  B117  B118
Mini Doublewide 17.8  x  8.9  x  3.0  B136 B137
Long Strip 19.0  x  3.8  x  2.2  B126 B127
    *Notes: The "Slim" container is not currently available in the clear version, but the black version (B147) is still available for now.
                 Dimensions listed are L x W x H.
