PerfectWestern Containers - "Dura" & "Thin" options

$0.00
Quantity:
Description
Specifications
Ordering
Documents

Product Description

Four of our most popular PerfectWestern Containers (Small, Medium, Large, & Extra Large) are also available in the new "Dura" material. And 2 of the sizes (Small & Medium) are available in the "Thin" height.


The PerfectWestern-Dura containers use a more flexible, proprietary polystyrene blend. They are still crystal clear, but are much stronger and will last longer. The "Thin" versions are 1.9 cm tall, instead of the standard height (3.3 cm for Small, 2.9 cm for Medium). They take up less space, but functionally are just as effective.


All of these containers are available in clear & black versions. Dimensions, Catalog numbers, and Recommended volumes are listed in the Specifications Tab. You can also find information on our standard containers here:

   12 Single-chamber containers for full blots (Click here)
   11 Single-chamber containers for membrane strips (Click here)
   14 Compartmented Containers for membrane strips (Click here).


Which PerfectWestern Container fits your Gel System?
Gel Manufacturer Our Container Cat. No. (Clear version)
Bio-Rad
  Mini-PROTEAN 3 Medium B101
  Criterion Precast Extra Large B109
  PROTEAN II xi, 16 cm Jumbo / Enormo B138 / B111
  PROTEAN II xi, 20 cm Enormo B111
  PROTEAN II XL, 16 cm Enormo/Colosso/2D Tray B111 / B140 / B142
  PROTEAN Plus Colosso / 2D Tray B140 / B142
Invitrogen/Novex
  Novex XCell SureLock Mini Mini Square B144
  Novex XCell SureLock Midi Extra Large B109
  E-PAGE Gels Extra Large B109
Biometra (formerly from Invitrogen)

  Mini-V 8•10 Medium B101
  V15•17 Vertical Gel. Elect. Jumbo / Enormo B138 / B111
  V16 or V16-2 Jumbo / Enormo  B138 / B111
  Maxigel Enormo/Colosso/2D Tray B111 / B140 / B142
GE / Hoefer (formerly Amersham)

  Mighty Small SE250 Medium / Mini Square B101 / B144
  Mighty Small SE260 Mini Square / Large B144 / B107
  miniVE Vert. Gel Elect (SE300) Large / Square B107 / B119
  SE600/SE400 (18 x 8) Mini Doublewide / XL B136 / B109
  SE600/SE400 (18 x 16) Jumbo / Enormo B138 / B111
  SE640 (18 x 8)  Mini Doublewide B136
  SE660 (24 x 18)   Multi-Wide/Colosso/2D Tray   B148 / B140 / B142
  Ettan Dalt II / six / twelve (2D gel) Colosso / 2D Tray B140 / B142
  Multiphor II, Excel 2D 12.5 Multi-Wide B148
  Multiphor II, Excel XL 12-14 Colosso / 2D Tray B140 / B142
Lonza (formerly Cambrex/FMC/BMA)
  PAGEr Gold Precast (8.3 x 7.1) Medium B101
  PAGEr Gold Precast (8.3 x 8.1) Mini Square B144
Owl/ThermoFisher
  Puffin P81 Large / Square B107 / B119
  Penguin P8DS Large / Square B107 / B119
  Penguin P9DS Jumbo / Enormo B138 / B111
  Penguin P10DS Enormo/Colosso/2D Tray B111 / B140 / B142

Container Inside Dimensions (LxWxH):

Container Dimensions (cm) Dimensions (inches) Clear Black   Vol. (minimum/recom.)
 PerfectWestern-Dura version

   Small 7.3  x  5.1  x  3.3 2 7/8  x  2  x  1 5/16  B104-D  B105-D     1.5 mL / 2.0 - 3.0 mL
   Medium 9.1  x  6.6  x  3.2 3 5/8  x  2 5/8  x  1 1/4  B101-D  B103-D     2 mL / 3 - 5 mL
   Large  11.7  x  9.0  x  2.9 4 5/8  x  3 9/16  x  1 1/8  B107-D  B108-D     3.5 mL / 5 - 9 mL
   Extra Large  15.4  x  10.4  x  3.6 6 1/16  x  4 1/16  x  1 1/2  B109-D  B110-D     6 mL / 8 - 12 mL
 "Thin" version
   Small 7.3  x  5.1  x  1.9 2 7/8  x  2  x  3/4  B104-T  B105-T     1.5 mL / 2.0 - 3.0 mL
   Medium 9.1  x  6.6  x  1.9 3 5/8  x  2 5/8  x  3/4  B101-T  B103-T     2 mL / 3 - 5 mL
*Notes: "Dimensions" refers to the inside dimensions (L x W x H) within the container.
              "Volume" column refers to the solution volume (minimum & recommended) required to cover a membrane during Western blotting.
                       These volumes are variable and depend on several factors including your rocker/shaker & how expensive your antibody is.
              If you want to find our standard Small, Medium, Large, and Extra Large containers you can find them here: Single-chamber containers.

Documents

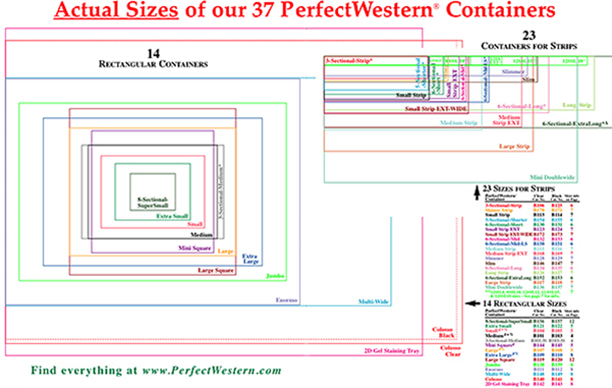

perfectwesternbrochure2016coverdownload.jpg             perfectwestern-actual-sizes-layout-web-opt.jpg


Catalog Numbers (SKU) for Clear & Black versions
Container Dimensions (cm)   Clear   Black
 PerfectWestern-Dura version

   Small 7.3  x  5.1  x  3.3    B104-D    B105-D
   Medium 9.1  x  6.6  x  3.2    B101-D    B103-D
   Large  11.7  x  9.0  x  2.9    B107-D    B108-D
   Extra Large  15.4  x  10.4  x  3.6    B109-D    B110-D
 "Thin" version
   Small 7.3  x  5.1  x  1.9    B104-T    B105-T
   Medium 9.1  x  6.6  x  1.9    B101-T    B103-T
*Notes: "Dimensions" refers to the inside dimensions (L x W x H) within the container.
              "Volume" column refers to the solution volume (minimum & recommended) required to cover a membrane during Western blotting.
                    These volumes are variable and depend on several factors including your rocker/shaker & how expensive your antibody is.
              If you want to find our standard Small, Medium, Large, and Extra Large containers you can find them here: Single-chamber containers.
