PerfectWestern Containers - Compartmented/Sectional

$0.00
Quantity:
Description
Specifications
Ordering
Documents

Product Description

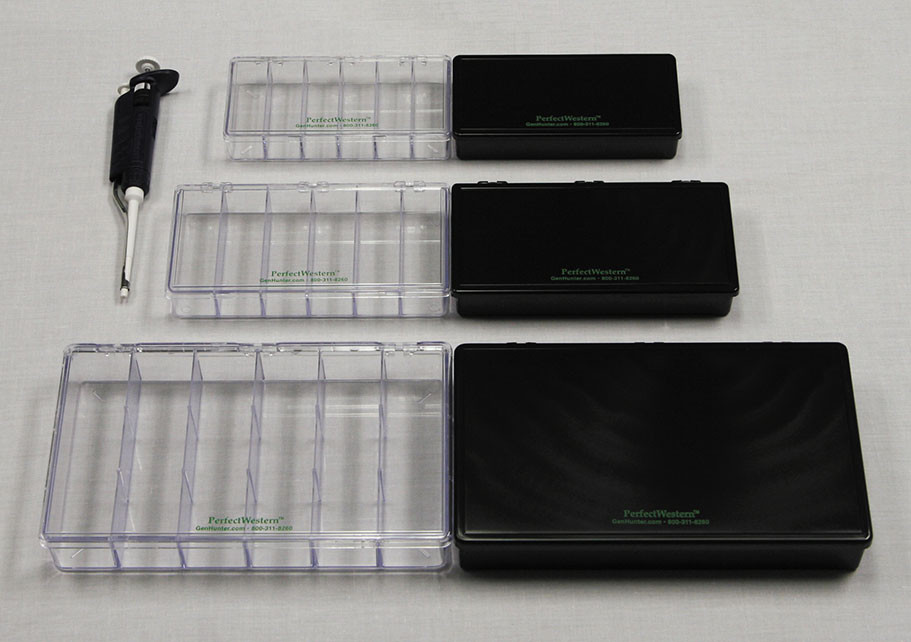

We offer these 14 PerfectWestern Containers in Compartmented/Sectional format for membrane strips. Most containers are available in clear & black versions. Dimensions, Catalog numbers, and Recommended volumes are listed in the Specifications Tab.


We have another 12 Single-chamber containers for full blots (Click here) & 11 Single-chamber containers for membrane strips (Click here).



Which PerfectWestern Container fits your Gel System?
Gel Manufacturer Our Container Cat. No. (Clear version)
Bio-Rad
  Mini-PROTEAN 3 Medium B101
  Criterion Precast Extra Large B109
  PROTEAN II xi, 16 cm Jumbo / Enormo B138 / B111
  PROTEAN II xi, 20 cm Enormo B111
  PROTEAN II XL, 16 cm Enormo/Colosso/2D Tray B111 / B140 / B142
  PROTEAN Plus Colosso / 2D Tray B140 / B142
Invitrogen/Novex
  Novex XCell SureLock Mini Mini Square B144
  Novex XCell SureLock Midi Extra Large B109
  E-PAGE Gels Extra Large B109
Biometra (formerly from Invitrogen)

  Mini-V 8•10 Medium B101
  V15•17 Vertical Gel. Elect. Jumbo / Enormo B138 / B111
  V16 or V16-2 Jumbo / Enormo  B138 / B111
  Maxigel Enormo/Colosso/2D Tray B111 / B140 / B142
GE / Hoefer (formerly Amersham)

  Mighty Small SE250 Medium / Mini Square B101 / B144
  Mighty Small SE260 Mini Square / Large B144 / B107
  miniVE Vert. Gel Elect (SE300) Large / Square B107 / B119
  SE600/SE400 (18 x 8) Mini Doublewide / XL B136 / B109
  SE600/SE400 (18 x 16) Jumbo / Enormo B138 / B111
  SE640 (18 x 8)  Mini Doublewide B136
  SE660 (24 x 18)   Multi-Wide/Colosso/2D Tray   B148 / B140 / B142
  Ettan Dalt II / six / twelve (2D gel) Colosso / 2D Tray B140 / B142
  Multiphor II, Excel 2D 12.5 Multi-Wide B148
  Multiphor II, Excel XL 12-14 Colosso / 2D Tray B140 / B142
Lonza (formerly Cambrex/FMC/BMA)
  PAGEr Gold Precast (8.3 x 7.1) Medium B101
  PAGEr Gold Precast (8.3 x 8.1) Mini Square B144
Owl/ThermoFisher
  Puffin P81 Large / Square B107 / B119
  Penguin P8DS Large / Square B107 / B119
  Penguin P9DS Jumbo / Enormo B138 / B111
  Penguin P10DS Enormo/Colosso/2D Tray B111 / B140 / B142




Container Inside Dimensions (LxWxH):

Container Compartment Dims (cm) Compartment Dims (") Overall Dims (cm) Clear Black Rec. vol.
3-Sectional-Strip 7.3  x  1.6  x  1.3
2 7/8 x 5/8 x 1/2 7.3 x 5.1 x 1.6* B106 B125   0.6 mL
5-Sectional-Shorter 7.3  x  2.4  x  3.3
2 7/8 x 15/16 x 1 3/8 14.5 x 7.3 x 3.3 B154 B155   0.95 mL
6-Sectional-Short 8.4  x  2.7  x  3.2 3 5/16 x 1 1/16 x 1 1/4  17.3 x 8.4 x 3.2 B130 B131   1.3 mL
6-Sectional-Mid 10  x  3.2  x  3.3 3 15/16 x 1 9/32 x 1 3/8 20.2 x 10 x 3.3 B132 B133   1.75 mL
3-Sectional-Medium 10  x  6.6  x  3.3 3 15/16 x 2 5/8 x 1 3/8 20.2 x 10 x 3.3 B101-3S B103-3S   3.3 mL
6-Sectional-Mid-LS 11.6  x  3.2  x  3.3 4 9/16 x 1 9/32 x 1 3/8 20.5 x 11.6 x 3.3  B150* N/A   2 mL
6-Sectional-Long 15.8  x  4  x  4.4 6 3/16 x 1 9/16 x 1 3/4 26.7 x 15.8 x 4.4  B134  B135   3.5 mL
6-Sectional-ExtraLong 21.3  x  5  x  5.7 8 3/8 x 1 15/16 x 2 1/4 32.1 x 21.3 x 5.7  B152 B153*   6 mL
12-Sectional-SkinnyL8 8.5  x  0.65  x  1.1
4 3/8 x 1/4 x 7/16 11 x 11.3 x 1.4  B158 N/A   0.25 mL
8-Sectional-SkinnyL10 10.3  x  0.65  x  1.1
4 x 1/4 x 7/16 12.7 x 8.6 x 1.5  B160 N/A   0.32 mL
12-Sectional-SkinnyL12 12.5  x  0.65  x  1.1
4 15/16 x 1/4 x 7/16 14.9 x 11.3 x 1.4 B162 N/A
  0.4 mL
12-Sectional-SkinnyL15 14.9  x  0.65  x  1.1
5 7/8 x 1/4 x 7/16 17.2 x 11.3 x 1.4 B164   N/A
  0.5 mL
12-Sectional-SkinnyL18 18.4  x  0.65  x  1.1
7 1/4 x 1/4 x 7/16 20.9 x 11.3 x 1.4 B166   N/A
  0.6 mL
8-Sectional-SuperSmall 3.2  x  2.6  x  3
1 1/4 x 1 x 1 3/16 11.1 x 6.7 x 3
B156 N/A   0.4 mL
    *Notes: "Compartment Dims" means the inside dimensions (L x W x H) of each compartment within the container. For instance, the
                      6-Sectional-Mid has 6 equal compartments, each 10 x 3.2 cm with height of 3.3 cm.
                 "Overall Dims" means the overall size of the entire container.
                 "Rec. vol." refers to the recommended solution volume required per compartment to cover a membrane during Western blotting.
                  The 3-Sectional-Strip black version (B125) is 2.5 cm tall, instead of 1.6 cm for the clear version.
                  The 6-Sectional-Mid-LS container (B150) is not currently available.
                  The 6-Sectional-ExtraLong opaque version (B153) is opaque YELLOW, not standard opaque black.

Documents

perfectwesternbrochure2016coverdownload.jpg             perfectwestern-actual-sizes-layout-web-opt.jpg



Catalog Numbers (SKU) for Clear & Black Versions
Container Compartment Dims (cm) Overall Dims (cm) Clear Black
3-Sectional-Strip 7.3  x  1.6  x  1.3
7.3 x 5.1 x 1.6* B106 B125
5-Sectional-Shorter 7.3  x  2.4  x  3.3
14.5 x 7.3 x 3.3 B154 B155
6-Sectional-Short 8.4  x  2.7  x  3.2  17.3 x 8.4 x 3.2 B130 B131
6-Sectional-Mid 10  x  3.2  x  3.3 20.2 x 10 x 3.3 B132 B133
3-Sectional-Medium 10  x  6.6  x  3.3 20.2 x 10 x 3.3 B101-3S B103-3S
6-Sectional-Mid-LS 11.6  x  3.2  x  3.3 20.5 x 11.6 x 3.3  B150* N/A
6-Sectional-Long 15.8  x  4  x  4.4 26.7 x 15.8 x 4.4  B134  B135
6-Sectional-ExtraLong 21.3  x  5  x  5.7 32.1 x 21.3 x 5.7  B152 B153*
12-Sectional-SkinnyL8 8.5  x  0.65  x  1.1
11 x 11.3 x 1.4  B158 N/A
8-Sectional-SkinnyL10 10.3  x  0.65  x  1.1
12.7 x 8.6 x 1.5  B160 N/A
12-Sectional-SkinnyL12 12.5  x  0.65  x  1.1
14.9 x 11.3 x 1.4 B162 N/A
12-Sectional-SkinnyL15 14.9  x  0.65  x  1.1
17.2 x 11.3 x 1.4 B164   N/A
12-Sectional-SkinnyL18 18.4  x  0.65  x  1.1
20.9 x 11.3 x 1.4 B166   N/A
8-Sectional-SuperSmall 3.2  x  2.6  x  3
11.1 x 6.7 x 3
B156 N/A
    *Notes: "Compartment Dims" means the inside dimensions (L x W x H) of each compartment within the container. For instance, the
                     6-Sectional-Mid has 6 equal compartments, each 10 x 3.2 cm with height of 3.3 cm.
                 "Overall Dims" means the overall size of the entire container.
                  The 3-Sectional-Strip black version (B125) is 2.5 cm tall, instead of 1.6 cm for the clear version.
                  The 6-Sectional-Mid-LS container (B150) is not currently available.
                  The 6-Sectional-ExtraLong opaque version (B153) is opaque YELLOW, not standard opaque black.
